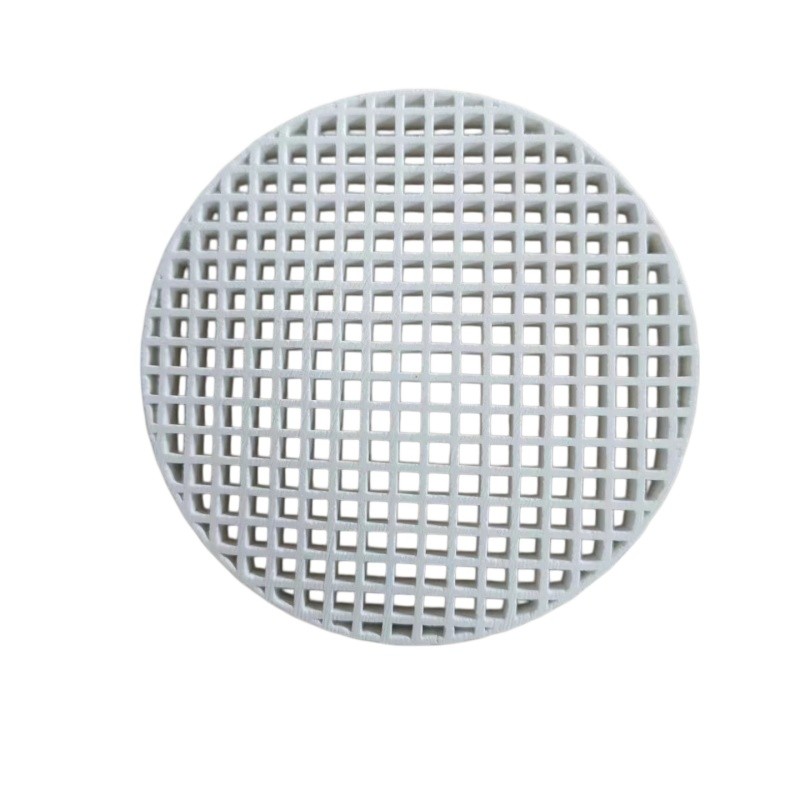

Cordierite Extruded Honeycomb Ceramic Filter for Molten Metal Filtration
- Size: 35-200mm
- Shape: Plate
- Csi: 50/100/200/300
- Compressive Strength: 20Mpa
- Specification
- FAQs
Cordierite Extruded Honeycomb Ceramic Filter for Molten Metal Filtration
Description :
The extruded Honeycomb ceramic filter is a fine strainer with straight hole structure.Honeycomb ceramic filter is mainly used for filtration of molten metal in metallurgy and foundry industry, to purify metal liquid and reduce non- metal impurity and gas, make the metal liquid to remain calm and reduce the swirl. We can produce different size and shape of extruded ceramic filter.
Product Features:
1. Purify metal liquid; get rid of non- metal impurity and gas.
2. Make the metal liquid flowing at stable speed and reduce the swirl.
3. Simplify the gating system and improve the producing rate.
4. Reduce the bubbles in casting and optimize metal structure.
5. Improve surface quality and mechanical performance of casting.
6. Reduce the rejection rate of casting, prolong the casting working life and reduce casting cost.
Product Parameters：
|
Item |
Extruded Honeycomb Ceramic Filter |
|
Technology:
|
Extruded. |
|
Material: |
Cordierite, mullite, corundum mullite, zircon mullite, zirconia-corundum, high aluminum, silicon carbide and etc. |
|
Pore density: |
Pore density: 100PCSI, 200PCSI, 300PCSI, etc. |
|
Available range of thickness: |
12 mm to 22mm or as per client's requirements. |
|
Available range of size |
25 mm to 200 mm. |
|

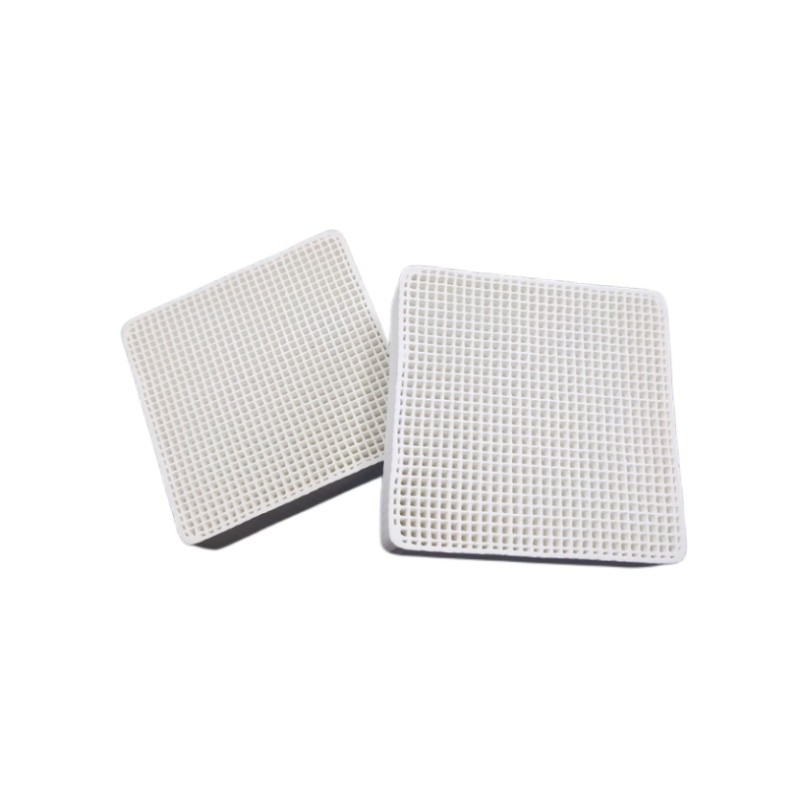

Appearance shape: |
Round, square and rectangle |
Application :
Extruded honeycomb ceramic filter is able to get rid of the metal impurity, refractory scrap, solid refractory alloy, sinter and molten metal liquid when casting products, reduce the air vent of castings, raise the casting quality, and reduce the cost. It has small resistance, high strength, high temperature resistance, corrosion resistance and good thermal shock resistance and excellent filtering adsorption performance.
Service:
First of all, our factory adheres to the principle of quality first. We have a group of professional technical and inspection personnel to focus on product quality control and Technological innovation. For each product, we have strict process inspection and factory inspection. We have a well export experience, to provide customers with professional pre-sales and after-sales service and technical support. Sales process will be active tracking queries, Positively solve the problems in the follow-up use of customers.
FAQ - Cordierite Extruded Honeycomb Ceramic Filter for Molten Metal Filtration
It's a ceramic filter with a honeycomb structure of parallel channels, used in metal casting to purify molten metal. It removes oxides, slag, and inclusions, reduces casting defects (porosity, cracks), and converts turbulent flow into smooth laminar flow.
| Advantage | Benefit |
|---|---|
| High thermal shock resistance | Withstands rapid temperature changes without cracking |
| Low thermal expansion | Reduces stress from thermal cycling |
| Chemical inertness | Won't react with molten metals, preventing contamination |
| Cost-effective | More affordable than silicon carbide alternatives |
Working temperature range: 600°C to 1600°C, depending on the metal.
| Parameter | Typical Value |
|---|---|
| Channel density | 100–300 CPSI |
| Porosity | ~59% |
| Compressive strength | Up to 69 MPa |
| Softening temperature | >1250°C |
| Sizes | 25–200mm; thickness 12–22mm |
| Shapes | Round, square, rectangle |
- Aluminum casting – removes oxides and dross
- Steel & iron casting – removes slag and inclusions
- Copper & brass casting – achieves high-purity castings
- Investment casting – clean pours for aerospace, automotive, medical parts
- Metal recycling – purifies recycled metal for reuse
- Improved surface finish and quality
- Reduced rejection rate
- Simplified gating system
- Better machinability and longer tool life
- Fewer bubbles and structural defects
| Density | Best For |
|---|---|
| 100 CPSI | Coarse filtration, larger inclusions, high flow rates |
| 200 CPSI | Balanced performance, general applications |
| 300 CPSI | Fine filtration, quality-critical castings |
