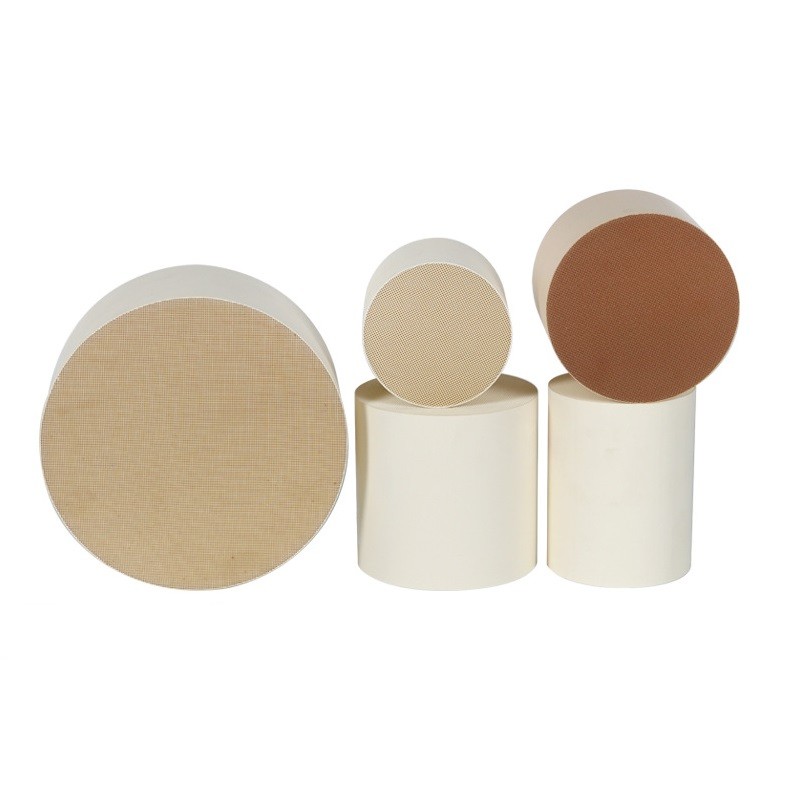

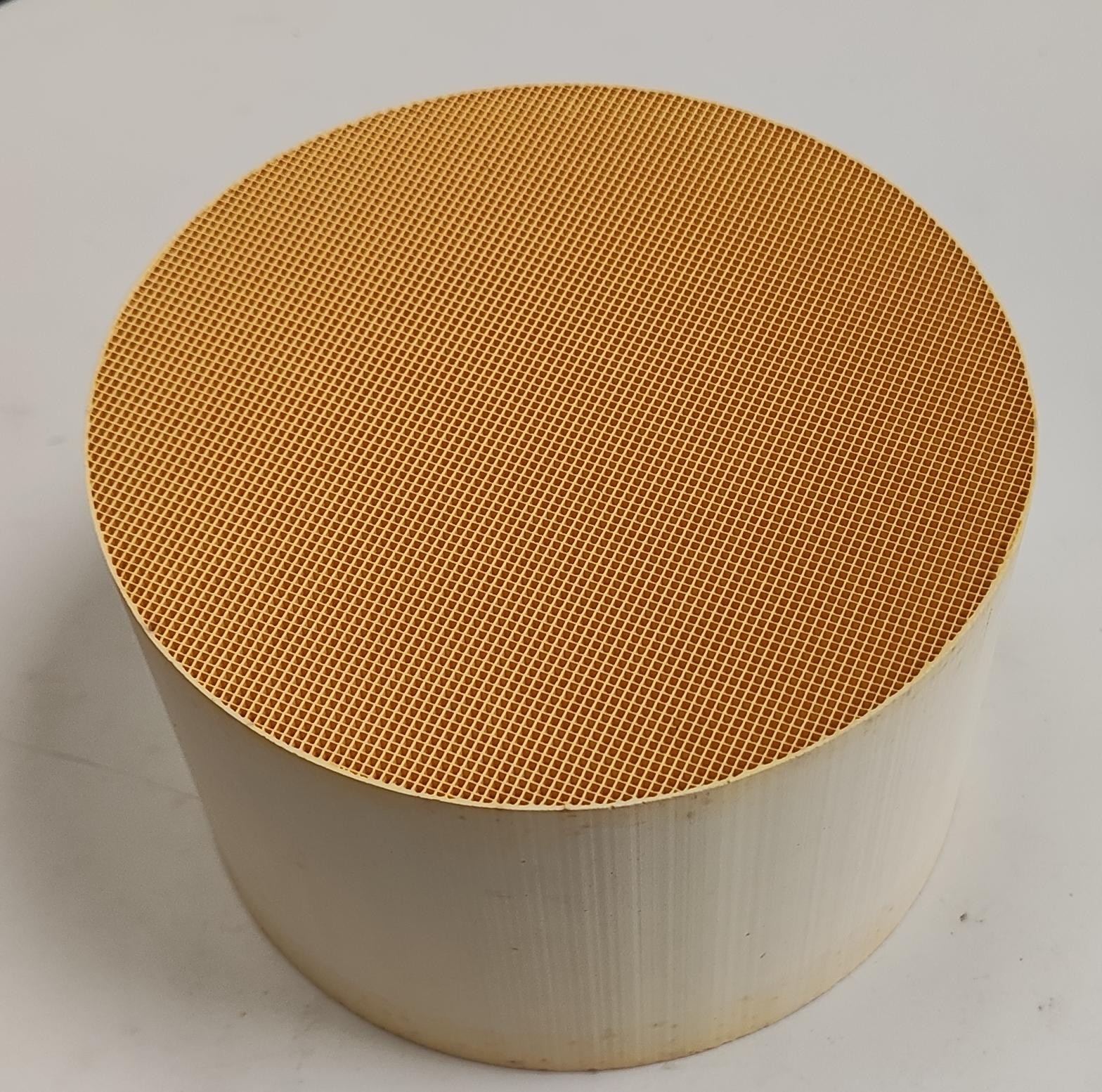

Honeycomb Ceramic Catalyst Carrier
- Materials: Cordierite Ceramic
- Emission Standard:Euro 3~6
- Shape: Round, Oval, Racetrack-Shaped
- Application:Auto Exhaust System
- Specification
- FAQs
Product Description:

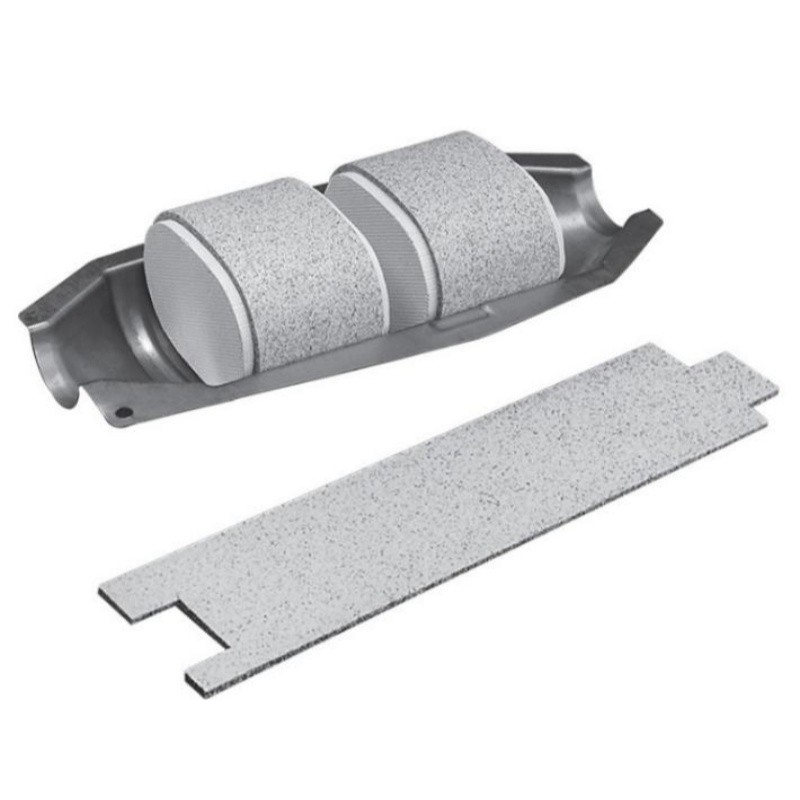

Honeycomb ceramics as a carrier is the key part of three-way catalytic converters. The honeycomb structure with thousands of parallel channels forces the exhaust gas into a turbulent state, resulting in more Good exhaust effect The contact between emissions and precious metals improves the mass transfer conditions and improves the conversion efficiency.Therefore the cordierite ceramic honeycombs have been developed as substrates for automotive catalytic converters to solve the environmental pollution problems.
Product Features：
1.High surface area
2.High porosity ratio
3.Small airway resistance
4.Low thermal expansion coefficient
5.Good resistance to chemical corrosion and thermal stability.high working temperature
6.Excellent compatibility with various active ingredients in the catalyst
Product Parameters
|
Carrier |
Cordierite Ceramic Honeycomb |
|
Shape: |
Round, Oval, Racetrack-shaped |
|
Materials |
Cordierite |
|
Size |
Diameter: 80-144mm Length: 70-152mm (Customized) |
|
Wall thickness |
<0.2mm |
|
Working temperature |
150-1200 ℃ |
|
Cell Density |
200-600 CPSI |
|
Conversion efficiency |
>98% |
|
Compressive strength |
>10Mpa |
|
Space velocity |
40000h-1 |
|
Heat shock temperature |
900℃ |
|
Application |
Auto Exhaust System |
Regular size
|
Specification |
Diameter (mm) |
Length (mm) |
Cell Density (CPSI) |
Emission Standard |
|
Ø80*60 |
80 |
60 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø93*60 |
93 |
60 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø93*75 |
93 |
75 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø93*88.3 |
93 |
88.3 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø93×101.6 |
93 |
101.6 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*60 |
101.6 |
60 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*76.2 |
101.6 |
76.2 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*90 |
101.6 |
90 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*100 |
101.6 |
100 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*118 |
101.6 |
118 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*123.3 |
101.6 |
123.3 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*136 |
101.6 |
136 |
200/300/400/600 |
Euro 4/5/6 |
|
Ø101.6*152.4 |
101.6 |
152.4 |
200/300/400/600 |
Euro 4/5/6 |
|
Remark: |
Other sizes can be customized according to customer requirements. |
|||
