Diesel Particulate Filter
- Material:Cordierite and SIC Ceramic
- Size : Customized Size
- Shape:Round, Oval, Racetrack-Shaped
- Application :For black smoke filtration of diesel engines
- Specification
- FAQs
Product Description:
Diesel Particulate Filter (hereinafter called DPF) is designed to remove black smoke (soot, hereinafter called PM) form diesel engine exhaust, making great contribution to clean the exhaust gas from diesel cars while attracting much attention from worldwide car manufacturers.The most effective type is the so called wall-flow filter. Particulate matter is removed from the exhaust by physical filtration using a honeycomb structure similar to an emissions catalyst substrate but with the channels blocked at alternate ends.Diesel particulate filter is suitable for exhaust gas purification of various kinds of diesel vehicles and ships. We can produce different materials of DPF: Cordierite diesel particulate filter and silicon carbide diesel particulate filter.
Product Feature:
· Low thermal expansion
· High filter specific surface area
· Low pressure drop
· Long-term durability performance
· High soot removal: >95%
· Excellent thermal shock resistance.
. High particulate trapping efficiency, suitable for all kinds of regeneration.
Product Parameters:

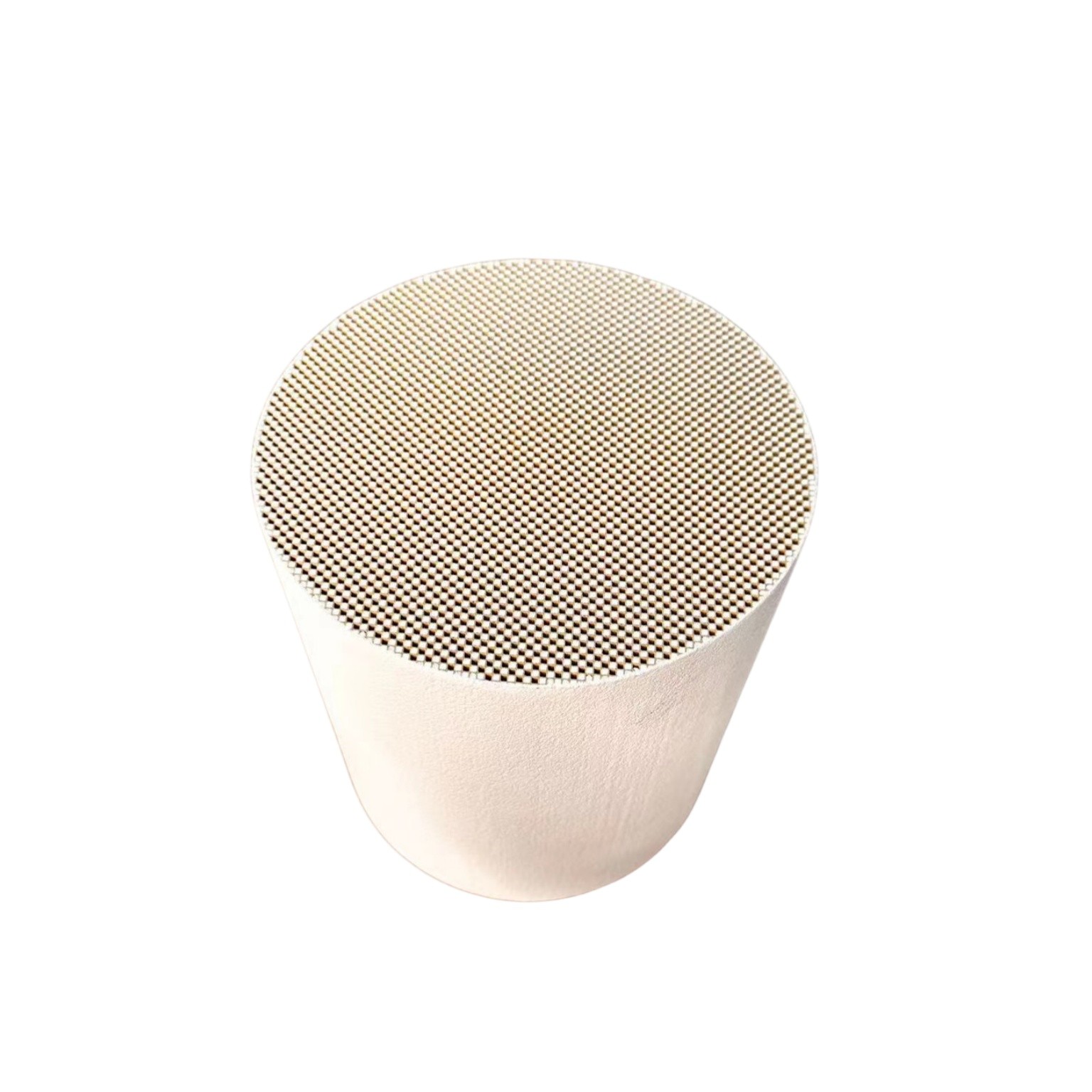

1. Cordierite diesel particulate filter :
|
Property |
Technical Index |
||
|
100/17 |
200/12 |
||
|
|
Cell density |
100CPSI |
200CPSI |
|
15.5 CPSCM |
31 CPSCM |
||
|
Wall thickness |
0.017 Inch |
0.012 Inch |
|
|
0.432 mm |
0.305 mm |
||
|
Open frontal area |
34.5% |
34.5% |
|
|
Geometric surface area |
33.3 Inch²/L |
47 Inch²/L |
|
|
1.31m²/L |
1.85m²/L |
||
|
Hydraulic diameter |
0.083 Inch |
0.059 Inch |
|
|
2.11mm |
1.49 mm |
||
|
Modulus of rupture |
350 CPSI/CPSCM |
300 CPSI/CPSCM |
|
|
Apparent porosity |
>=50% |
>=50% |
|
|
Coefficient of thermal expansion |
<=1.2×10-6 /ºC |
<=1.2×10-6 /ºC |
|
|
Compression strength in normal temperature |
>=10Mpa |
>=10Mpa |
|
|
Mean pore size |
13 Micron |
13 Micron |
|
|
Melting temperature |
>=1400ºC |
>=1400ºC |
|
|
Soot-filtration efficiency |
>=95% |
>=95% |
|
|
Chemical Composition |
SiO2 |
50.9±1% |
|
|
Al2O3 |
35.2±1% |
||
|
MgO |
13.9±1% |
||
Regular sizes:
|
Size |
CPSI |
Volume(L) |
|
φ118*152.4 |
100/200 |
1.67 |
|
φ118*254 |
100/200 |
2.78 |
|
φ127*152.4 |
100/200 |
1.93 |
|
φ127*180 |
100/200 |
2.3 |
|
φ127*254 |
100/200 |
3.22 |
|
φ144*152.4 |
100/200 |
2.49 |
|
φ144*203 |
100/200 |
3.31 |
|
φ144*254 |
100/200 |
4.44 |
|
φ144*305 |
100/200 |
4.97 |
|
φ190*152.4 |
100/200 |
4.32 |
|
φ190*203 |
100/200 |
5.76 |
|
φ190*305 |
100/200 |
8.65 |
|
φ240*240 |
100/200 |
10.9 |
|
φ240*305 |
100/200 |
13.8 |
|
φ250*305 |
100/200 |
14.97 |
|
φ267*254 |
100/200 |
14.22 |
|
φ267*267 |
100/200 |
14.95 |
|
φ267*305 |
100/200 |
17.07 |
|
φ286*305 |
100/200 |
19.6 |
|
φ286*355 |
100/200 |
22.8 |
|
φ305*305 |
100/200 |
22.28 |
|
φ330*381 |
100/200 |
32.59 |

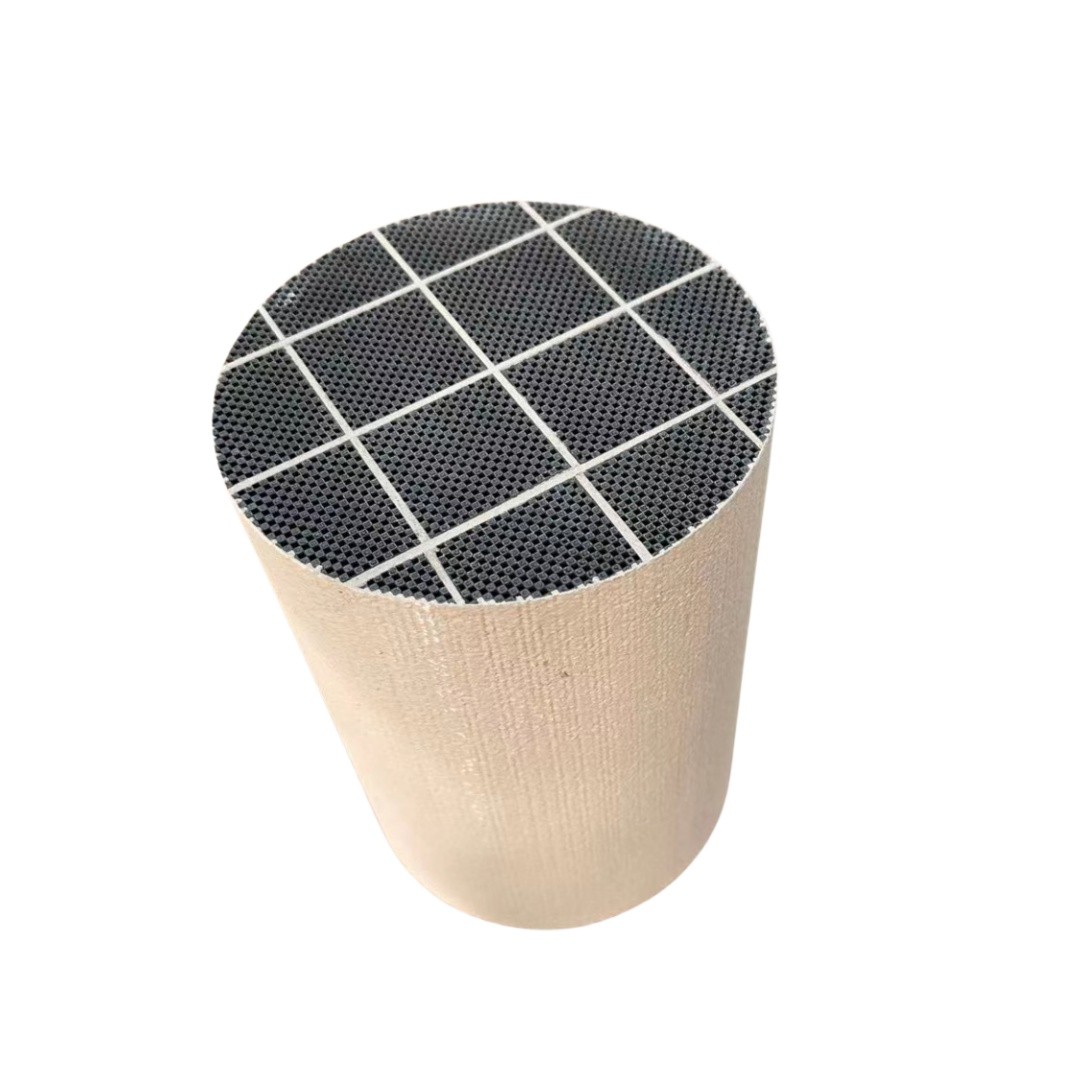

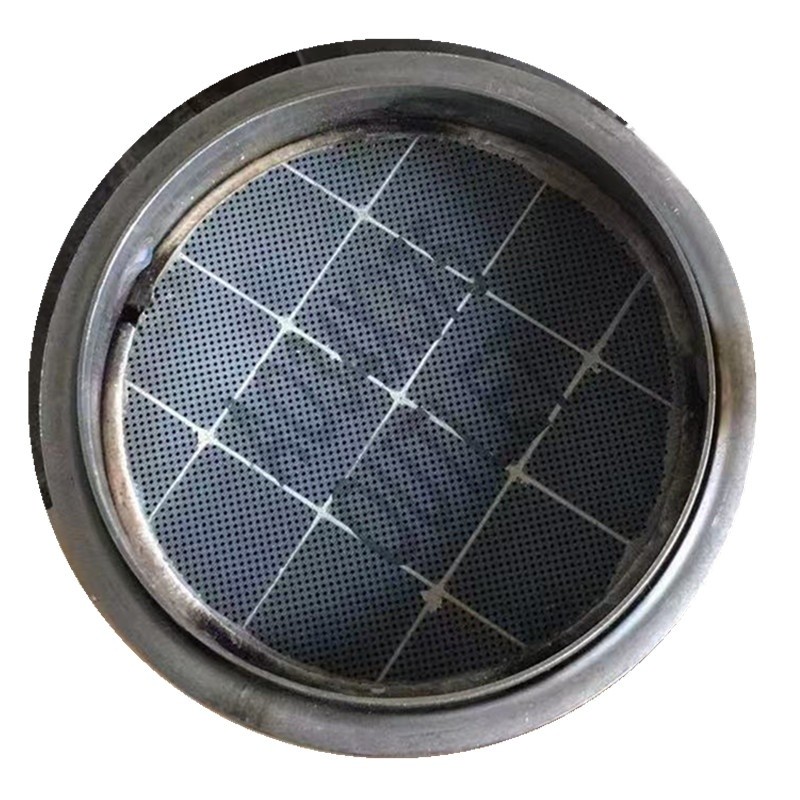

2.Silicon carbide diesel particulate filters:
|
Item |
Units |
Technical Index |
|
Sic content |
% |
>90 |
|
Cell density |
CPSI |
200,300 |
|
Wall thickness |
mm |
0.35-0.41 |
|
Cell length |
mm |
1.2-1.45 |
|
Apparent porosity |
% |
42-60 |
|
Median pore size |
m |
12-20 |
|
Transverse compression strength |
Mpa |
>2.3 |
|
Vertical compression strength |
Mpa |
10-18 |
|
Coefficient of thermal expansion (40-800ºC) |
10-6 /ºC |
4.3-4.4 |
|
Thermal Conductivity (500ºC) |
W/mK |
14-22 |
|
Capture rate |
% |
>95 |
|
Bulk density |
Kg/L |
0.8 |
|
Filter area |
m²/L |
0.75 |
|
Softening temperature |
ºC |
1400 |
Regular Sizes:
|
Cell density 200CPSI 300CPSI |
|||
|
Shape |
Size(mm) |
Size(inch) |
Volume (L) |
|
Round |
Φ144*152.4 |
Dia.5.66*6 |
2.48 |
|
Φ144*203 |
Dia.5.66*8 |
3.30 |
|
|
Φ144*254 |
Dia.5.66*10 |
4.14 |
|
|
Φ144*305 |
Dia.5.66*12 |
4.96 |
|
|
Φ170*254 |
Dia.6.69*10 |
5.76 |
|
|
Φ190*152.4 |
Dia.7.5*6 |
4.32 |
|
|
Φ190*203 |
Dia.7.5*8 |
5.75 |
|
|
Φ190*254 |
Dia.7.5*10 |
7.20 |
|
|
Φ228*152.4 |
Dia.9*6 |
6.22 |
|
|
Φ228*254 |
Dia.9*10 |
10.37 |
|
|
Φ228*305 |
Dia.9*12 |
12.45 |
|
|
Φ240*240 |
Dia.9.5*9.5 |
10.85 |
|
|
Φ240*254 |
Dia.9.5*10 |
11.48 |
|
|
Φ240*305 |
Dia.9.5*12 |
13.79 |
|
|
Φ267*305 |
Dia.10.5*12 |
17.07 |
|
|
Φ286*152.4 |
Dia.11.26*6 |
9.79 |
|
|
Φ286*305 |
Dia.11.26*12 |
19.58 |
|
|

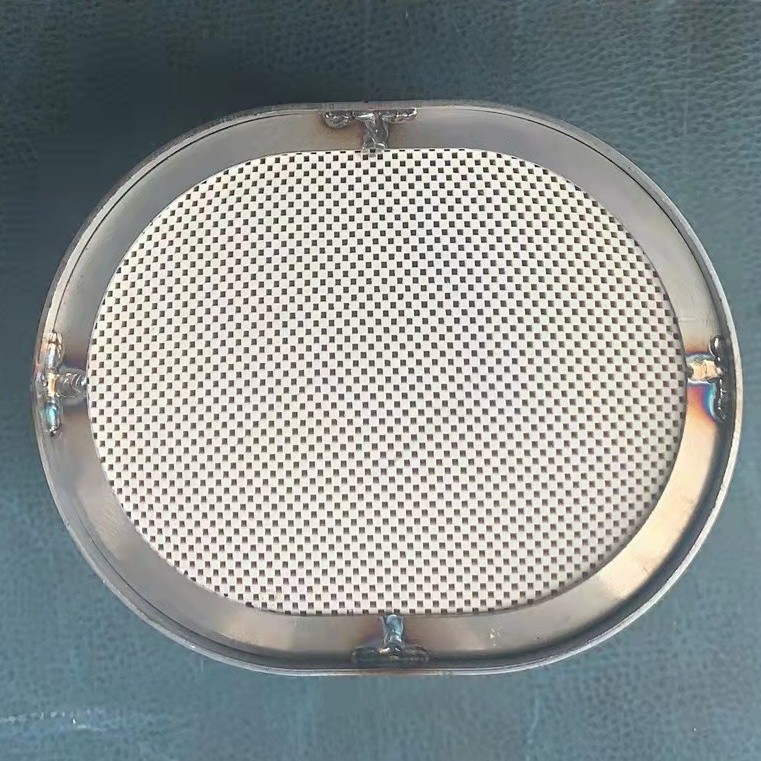

Oval |
191.8*95.8*152.4 |
7.55*3.77*6 |
2.24 |
|
Race track |
145*118.4*152.4 |
5.7*4.66*6 |
2.15 |
|
We can be customized according to customer requirements |
|||
